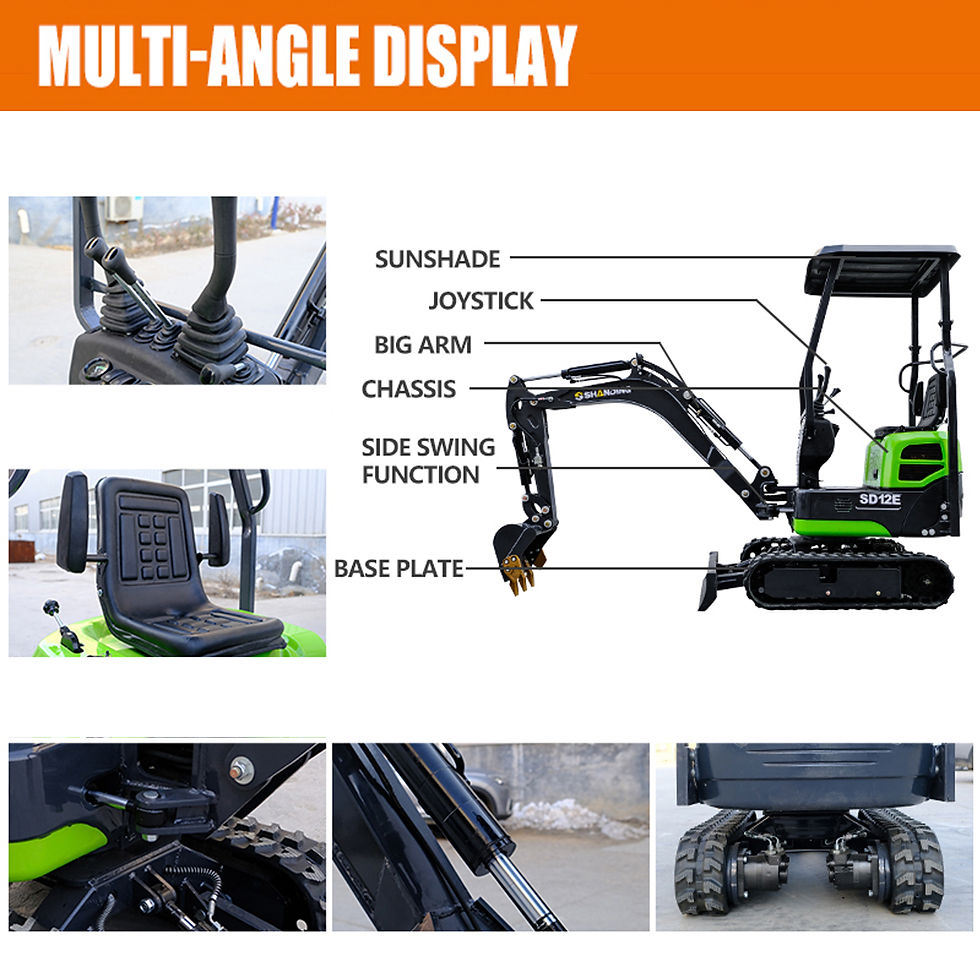

SD12E is a compact excavator with powerful digging capacity, small size and light weight.
It is suitable for small space construction, such as vegetable greenhouses, orchard nurseries and trench digging

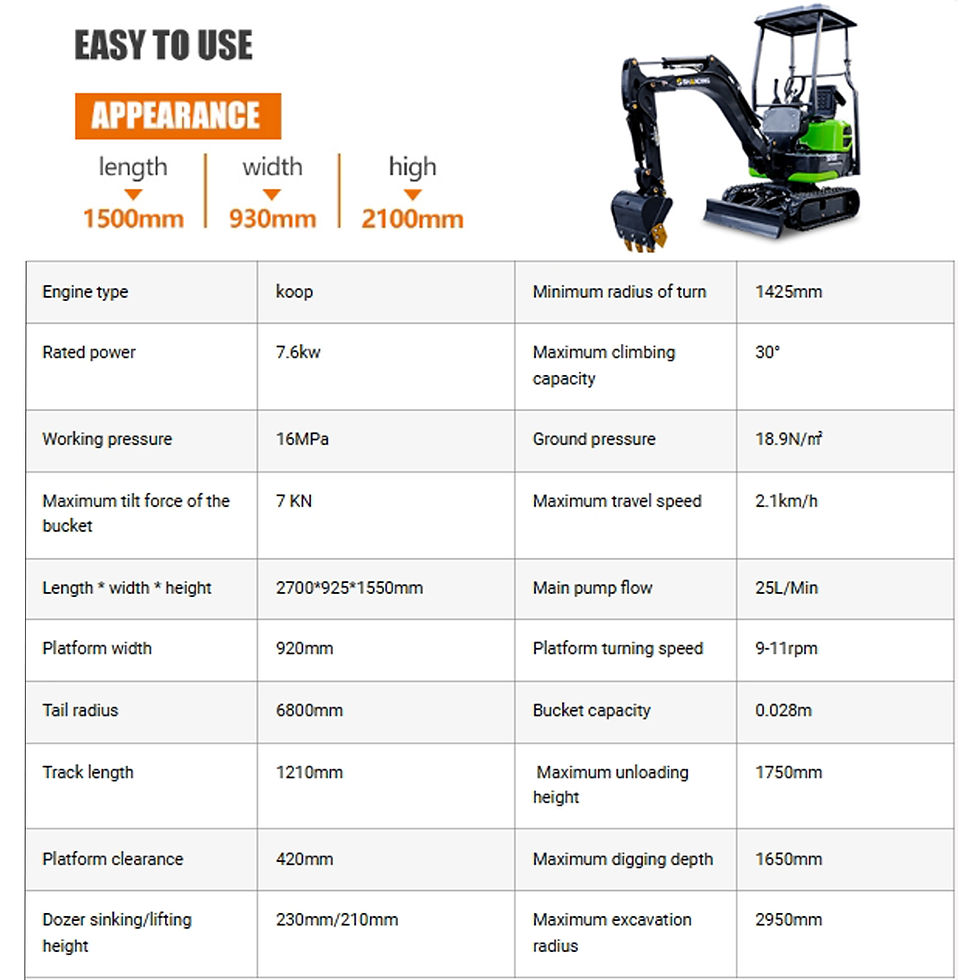

Specifications:
Engine type koop
Minimum radius of turn 1425mm
Rated power 7.6kw
Maximum climbing capacity 30°
Working pressure 16MPa
Ground pressure 18.9N/㎡
Maximum tilt force of the bucket 7 KN
Maximum travel speed 2.1km/h
Length * width * height 2700*925*1550mm
Main pump flow 25L/Min
Platform width    920mm
Platform turning speed 9-11rpm
Tail radius 6800mm
Bucket capacity 0.028m
Track length 1210mm
Maximum unloading height 1750mm
Platform clearance 420mm
Maximum digging depth 1650mm
Dozer sinking/lifting height 230mm/210mm
Maximum excavation radius 2950mm
